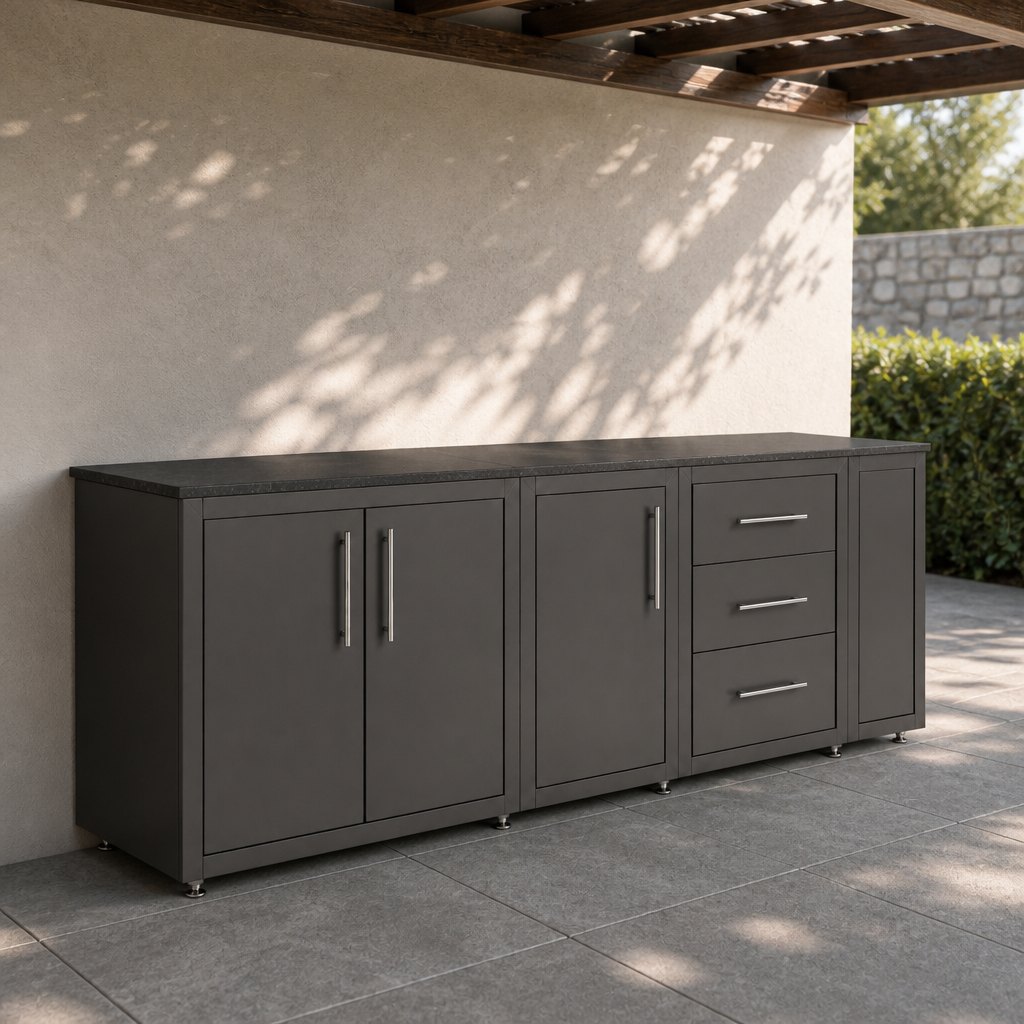

Honeycomb Aluminum Outdoor Kitchen Set — 3.0 m Run, Gunmetal Powder Coat
Built like a marine cabinet, not a garden shed — 0.62 m³ per run, 105 sets per 40HQ
An outdoor kitchen built like a marine cabinet rather than a garden shed. Carcass panels are 1.0 mm aluminum honeycomb, powder coated on both faces; frames are 1.2 mm extruded aluminum with welded corners; doors are aluminum-framed with a 1.0 mm infill panel. Nothing in the set is timber, so rain, pool chlorine and coastal salt air have nothing to swell or delaminate. It ships flat-packed as five cartons per 3.0 m run, which puts about 105 sets in a 40HQ and lets a distributor hold six powder-coat colors without a warehouse full of assembled carcasses.
- ModelFAME-KC-AL-GM
- Configuration3.0 m straight run, base units only; wall and island units optional
- Base units900 mm sink base, 900 mm door base, 900 mm three-drawer, 300 mm filler
- Carcass1.0 mm aluminum honeycomb panel, powder coated both faces, sealed edges
- Frame1.2 mm extruded aluminum profile, welded corners, mechanically fixed to carcass
- DoorsAluminum-framed doors with 1.0 mm powder-coated infill panel, 18 mm overall
Trade inquiry only — this is a B2B catalog with no online checkout. Our team replies within 24 hours.
Full Specification
- ModelFAME-KC-AL-GM
- Configuration3.0 m straight run, base units only; wall and island units optional
- Base units900 mm sink base, 900 mm door base, 900 mm three-drawer, 300 mm filler
- Carcass1.0 mm aluminum honeycomb panel, powder coated both faces, sealed edges
- Frame1.2 mm extruded aluminum profile, welded corners, mechanically fixed to carcass
- DoorsAluminum-framed doors with 1.0 mm powder-coated infill panel, 18 mm overall
- FinishGunmetal grey outdoor-grade polyester powder coat, UV stable
- Hardware304 stainless soft-close hinges, catches and full-extension drawer runners
- CountertopNot included — 20 mm quartz or poured concrete by local fabricator
- AssemblyFlat-pack RTA, cam-lock plus stainless bolts, no glue required
- Packing1 set in 5 cartons, 0.62 m³ total, EPE interleaved panels
- Loading quantityAbout 105 sets per 40HQ
- MOQ20 sets per configuration
- Lead time30–35 days after deposit and appliance schedule approval
- Loading portNingbo / Shanghai
Why Buyers Choose This Model
- Zero timber in the set: 1.0 mm aluminum honeycomb panels powder coated on both faces inside welded 1.2 mm frames, so there is no board edge to take up water
- 3.0 m straight run in four base units — 900 mm sink base, 900 mm door base, 900 mm three-drawer and 300 mm filler — at 720 mm carcass height
- Flat-pack RTA in five cartons totalling 0.62 m³, which loads about 105 sets per 40HQ instead of losing floor space to assembled carcasses
- Quoted per linear meter of run, so a dealer prices an outdoor kitchen the way it already prices a cabinet program
- 304 stainless hinges, catches and drawer runners throughout — no zinc-plated hardware that shows rust after one coastal season
- Countertop is excluded by design: a local fabricator cuts 20 mm quartz or pours concrete to the exact grill and sink cut-outs
- Appliance cut-outs for grill, sink, fridge and drawer fronts are machined at the factory to your appliance schedule, not opened up on site
- Six standard powder-coat colors on the same tooling at 20 sets per color, and 100–140 mm adjustable stainless feet level the run on a poured slab
Specification Questions Buyers Ask
Can an aluminum cabinet actually carry a built-in grill and a fridge?
Yes, provided the load is designed in rather than added later. Our frames are 1.2 mm extruded aluminum welded at the corners, and the grill housing sits on a pair of cross-rails fixed to the frame rather than on the back panel. Send the appliance cut-out schedule and weight with the inquiry and we return a carcass drawing showing where the reinforcement lands.
Will the powder coat survive coastal salt air?
The panels are acid-pickled and given a conversion coating before the polyester powder is applied and cured, which is the same sequence used for architectural aluminum. That is what keeps the coating from lifting at cut edges. We can supply the coating specification sheet with the quotation so your customer can compare it with painted steel.
How is this different from an indoor melamine kitchen?
Different material, different failure mode, different price logic. An indoor MFC kitchen is priced on boards and edge banding; this set is priced per linear meter of aluminum frame and panel, which is why it belongs in the outdoor program rather than the interior one. It is also roughly twice the material cost of a melamine carcass, so it is not a substitute for an entry-level indoor kitchen.
What is excluded from the set and what do we need to source locally?
Countertop, grill, sink, faucet, fridge and any lighting are excluded. We machine the carcass openings to your appliance schedule; the countertop template is cut on site once the appliances are set, which is normal practice for outdoor kitchens because grill heights vary between brands.
What is the MOQ, lead time and container loading?
20 sets per configuration, mixed colors allowed at 20 sets per color. Lead time is 30–35 days from deposit and appliance schedule approval. One 3.0 m run packs into five cartons at 0.62 m³, and a 40HQ carries about 105 sets.
