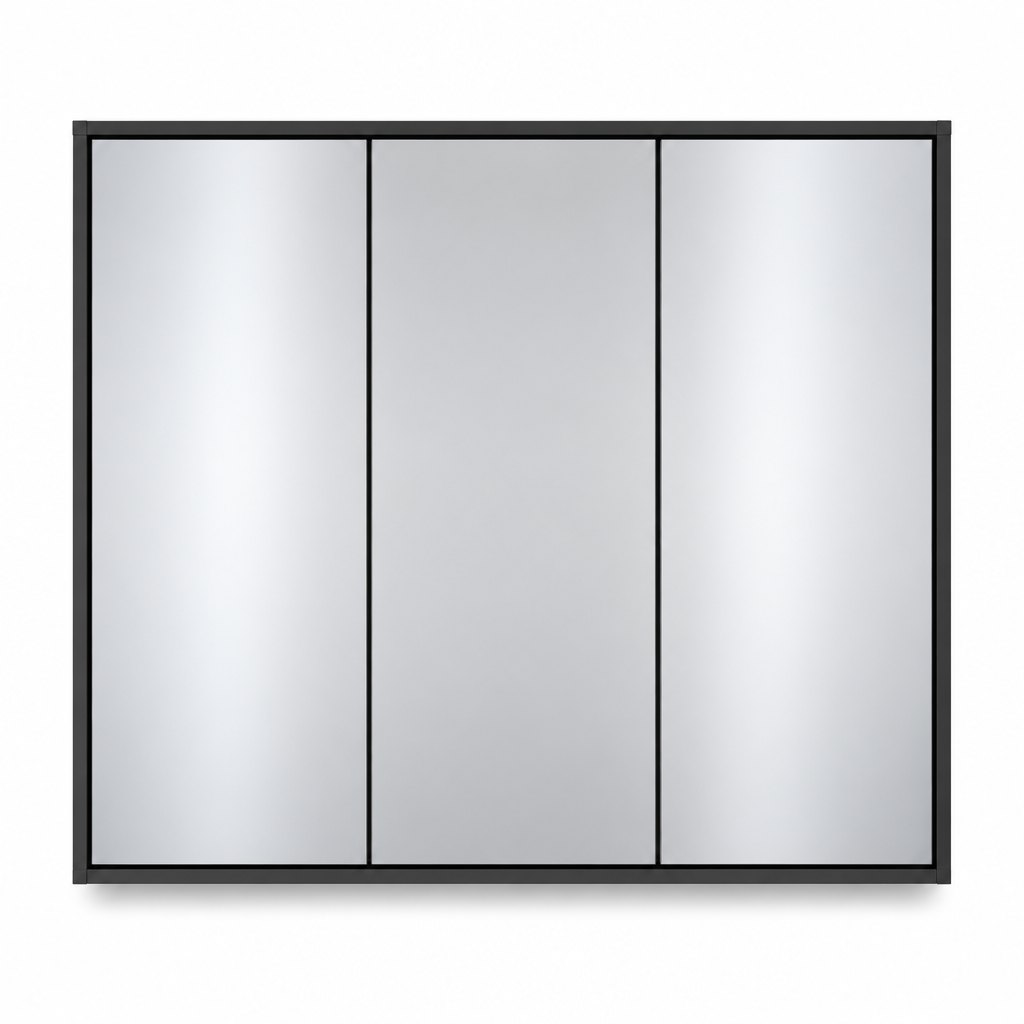

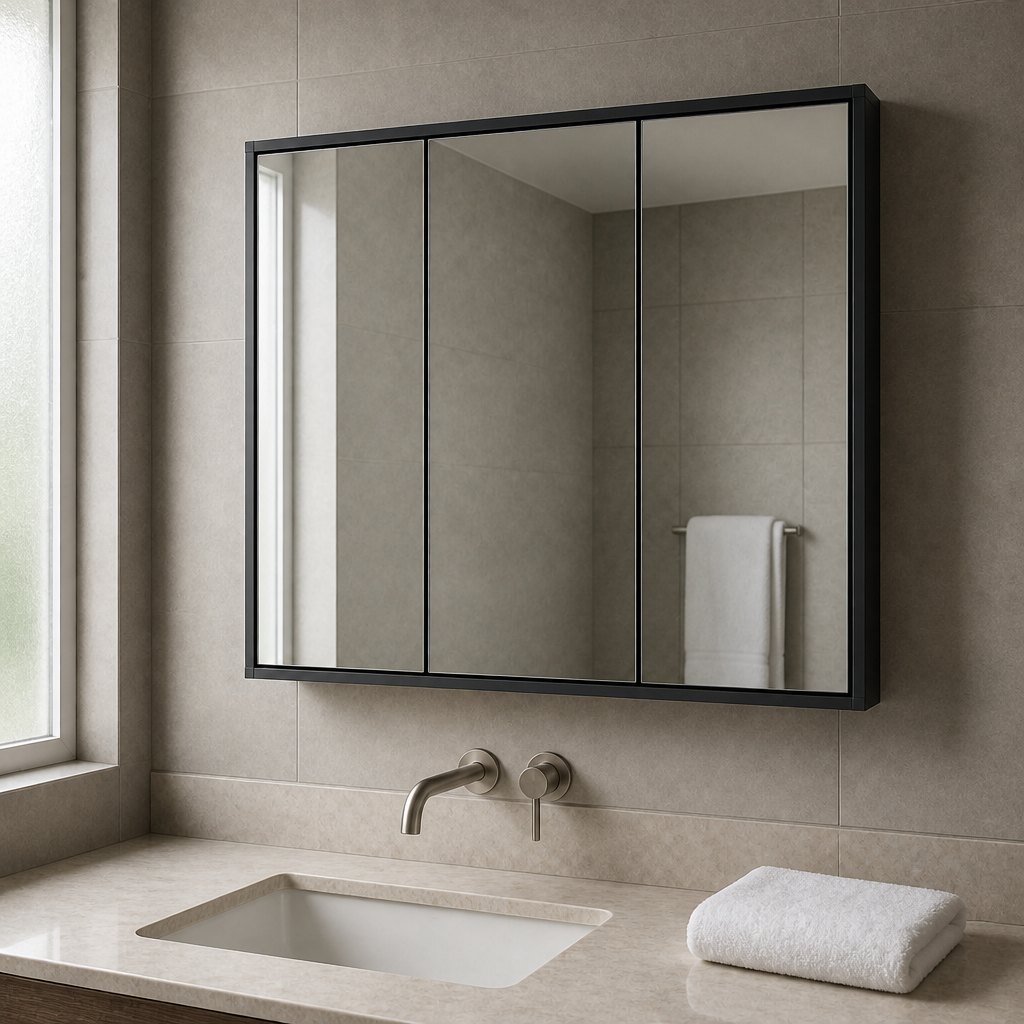

36 in Three-Door Aluminum Mirror Cabinet with Matte Black Anodized Frame
Honeycomb aluminum body, copper-free mirror — a medicine cabinet that cannot swell shut
A surface-mount medicine cabinet with no timber anywhere in the body. The carcass is 1.0 mm aluminum honeycomb composite, the frame is matte black anodized aluminum at a 15 mm face profile, and each of the three doors carries 4 mm copper-free mirror sealed on all four edges. Inside there are six tempered glass shelves, two per column, on stainless pins. Because nothing in the unit absorbs water, it is specified for hotels, multifamily and coastal projects where a particleboard cabinet deforms around the hinge screws within two seasons. A recessed aluminum mounting box is available on the same tooling.
- ModelFAME-MC-36MB
- Nominal size915 × 760 × 120 mm (36 × 30 × 4.7 in), W × H × D
- Carcass1.0 mm aluminum honeycomb composite panel, sealed edges, no timber content
- Frame and finishMatte black anodized aluminum, 15 mm face profile
- DoorsThree mirrored doors at 305 mm each, soft-close, 3-way adjustable hinges
- Mirror glass4 mm copper-free silver mirror, CAT-I, factory edge-sealed
Trade inquiry only — this is a B2B catalog with no online checkout. Our team replies within 24 hours.
Full Specification
- ModelFAME-MC-36MB
- Nominal size915 × 760 × 120 mm (36 × 30 × 4.7 in), W × H × D
- Carcass1.0 mm aluminum honeycomb composite panel, sealed edges, no timber content
- Frame and finishMatte black anodized aluminum, 15 mm face profile
- DoorsThree mirrored doors at 305 mm each, soft-close, 3-way adjustable hinges
- Mirror glass4 mm copper-free silver mirror, CAT-I, factory edge-sealed
- Shelving6 × 5 mm tempered glass shelves (2 per column), stainless pins
- MountingSurface-mount standard; recessed aluminum box option for 890 × 735 mm opening
- HardwareDTC soft-close hinges, stainless steel catches and shelf pins
- Finish optionsMatte black (shown), brushed nickel, champagne — same tooling
- Packing1 pc per carton, EPE wrap and corner protectors, 0.15 m³
- Loading quantityAbout 440 pcs per 40HQ
- MOQ20 pcs per model per finish
- Lead time25–30 days after deposit and finish confirmation
- Loading portNingbo / Shanghai
Why Buyers Choose This Model
- Carcass, doors, shelves and frame contain zero particleboard, MDF or plywood — only aluminum, glass and mirror, so humidity has no panel edge to swell
- 915 mm (36 in) wide, 760 mm (30 in) high and 120 mm deep, with three 305 mm mirrored doors that open clear of a 1200 mm vanity top
- 4 mm copper-free silver mirror on all three doors, edge-sealed at the factory to stop the black-edge corrosion that starts at an unsealed mirror rim
- Six 5 mm tempered glass shelves, two per column, adjustable on stainless pins in 32 mm increments so shelf spacing follows bottle height
- DTC soft-close hinges with stainless catches, tested in our bench rig to 50,000 open-close cycles before the door loses alignment
- Surface-mount as standard, with a recessed aluminum box option cut to an 890 × 735 mm rough opening for flush installation
- One carton per unit at 0.15 m³ and about 440 pcs per 40HQ, so mirror cabinets and vanities can share one container and one PO
- Matte black, brushed nickel and champagne run on the same tooling — the 20 pcs MOQ applies per finish, not per model
Specification Questions Buyers Ask
Is the cabinet body really aluminum, or is it a coated board?
The carcass, doors, back panel and shelves are aluminum honeycomb composite with tempered glass shelving. There is no particleboard, MDF or plywood in the unit. Only the hinges, catches and shelf pins are steel, and they are stainless so they do not corrode in a wet room.
Surface-mount or recessed — which should a project specify?
Surface-mount is the default because it needs no wall opening and can be installed after tiling. Recessed is specified when the architect wants the mirror flush with the wall; it needs an 890 × 735 mm rough opening and the aluminum box, which we cut on the same tooling, so both versions can ship on one order without a separate MOQ.
Can a damaged mirror door be replaced without replacing the cabinet?
Yes. The doors are separate SKUs hung on clip-on hinges, so a maintenance team swaps one door in minutes rather than removing the carcass from the wall. Order spare doors with the cabinet order — they nest inside the same carton and add very little freight.
How does the freight cost compare with a particleboard medicine cabinet?
The unit is lighter and packs into 0.15 m³, so the freight per piece is lower than a board cabinet of the same size, and about 440 pcs fit in a 40HQ. The purchase price sits above a board cabinet; the calculation that matters for a hotel or multifamily project is the replacement rate over a ten-year cycle, and that is where an aluminum body wins.
What is the MOQ, lead time and how is it packed?
20 pcs per model per finish, mixed widths within the same family allowed. Lead time is 25–30 days from deposit and finish confirmation. Each unit ships in its own carton with EPE wrap and corner protectors at 0.15 m³, and we can print your own carton artwork at no tooling charge.
