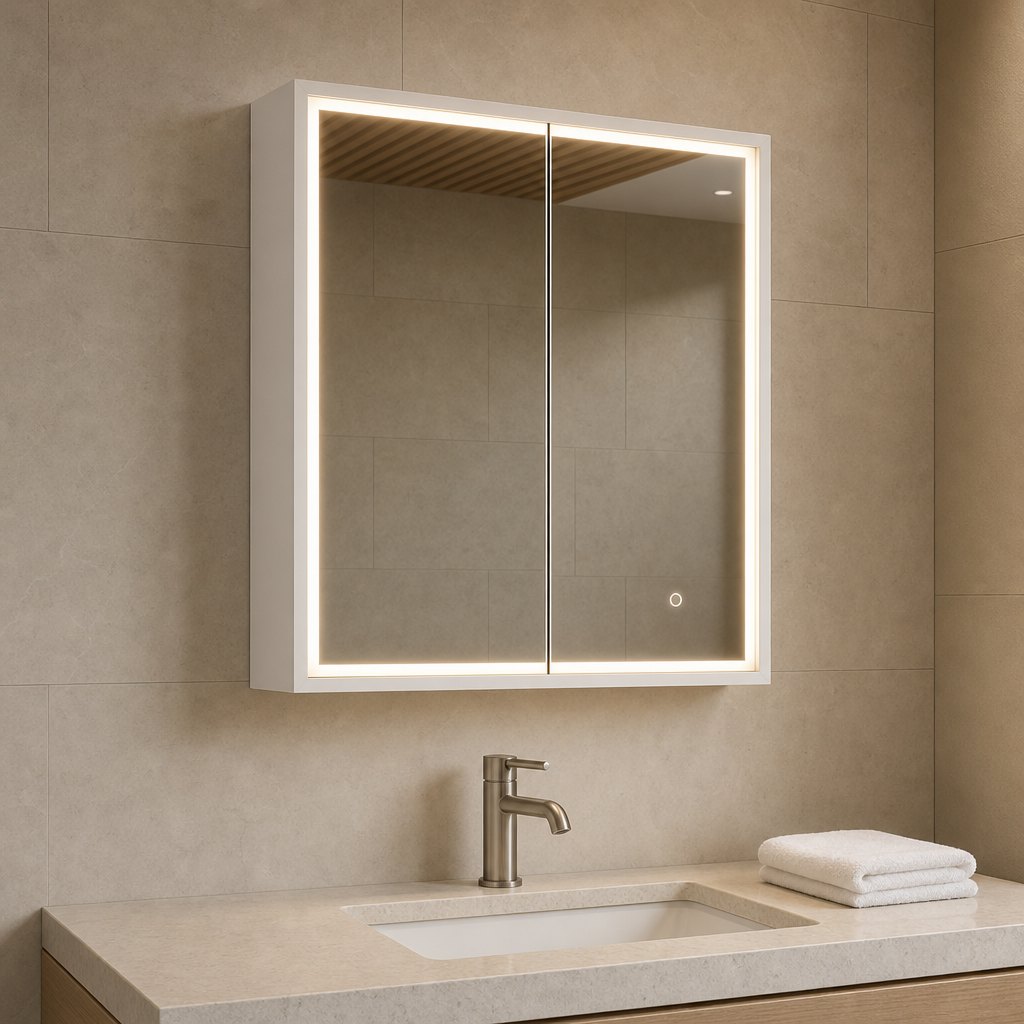

600mm Aluminum LED Mirror Cabinet with Anti-Fog Pad and Touch Dimmer
Front-lit 4000K strip, heated anti-fog pad, IP44 driver — a mirror cabinet hotels can service
A mirror cabinet with the lighting built into the carcass rather than stuck on afterwards. The body is 1.0 mm aluminum with a matte white powder coat, the light is a 4000K front-lit strip recessed behind the door edge, and a heated anti-fog pad sits behind the centre mirror. Controls are a capacitive touch sensor on the glass: on/off, dimming and a 3000K / 4000K / 6000K colour switch with memory. The driver is IP44 and sits in a service compartment, so a failed unit is swapped without removing the cabinet from the wall.
- ModelFAME-MC-60LED
- Nominal size600 × 700 × 130 mm (23.6 × 27.6 × 5.1 in), W × H × D
- Carcass1.0 mm aluminum panel, sealed edges, matte white powder coat
- Lighting4000K front-lit LED strip, recessed behind door edge, 12 W total
- Colour switching3000K / 4000K / 6000K via touch sensor, with memory
- Anti-fogHeated pad behind centre mirror, 600 × 400 mm active area
Trade inquiry only — this is a B2B catalog with no online checkout. Our team replies within 24 hours.
Full Specification
- ModelFAME-MC-60LED
- Nominal size600 × 700 × 130 mm (23.6 × 27.6 × 5.1 in), W × H × D
- Carcass1.0 mm aluminum panel, sealed edges, matte white powder coat
- Lighting4000K front-lit LED strip, recessed behind door edge, 12 W total
- Colour switching3000K / 4000K / 6000K via touch sensor, with memory
- Anti-fogHeated pad behind centre mirror, 600 × 400 mm active area
- ControlsCapacitive touch: on/off, 10–100 % dimming, colour switch
- DriverIP44 constant-current driver in hinged service compartment
- Mirror glass4 mm copper-free silver mirror, CAT-I, factory edge-sealed
- Doors and shelving2 soft-close mirrored doors, 3 × 5 mm tempered glass shelves
- Electrical220–240 V 50/60 Hz, 1.5 m flex, no plug fitted; CE / UKCA-ready build
- Packing1 pc per carton, foam corner blocks, 0.12 m³
- Loading quantityAbout 520 pcs per 40HQ
- MOQ / lead time20 pcs per model; 30–35 days after deposit
- Loading portNingbo / Shanghai
Why Buyers Choose This Model
- Front-lit 4000K LED strip recessed behind the door edge — even light on the face with no visible diode dots and no glare at eye level
- Heated anti-fog pad behind the centre mirror clears a 600 × 400 mm area, wired to the same switch so it cannot be left running by mistake
- Capacitive touch sensor with on/off, 10–100 % dimming and 3000K / 4000K / 6000K switching, with memory for the last setting
- IP44 constant-current driver in a hinged service compartment — a hotel maintenance team replaces it in minutes without unmounting the cabinet
- 600 × 700 × 130 mm body in 1.0 mm aluminum with matte white powder coat, no timber and no swelling at the mirror edge
- Two soft-close mirrored doors with DTC hinges, opening to three adjustable 5 mm glass shelves on stainless pins
- CE / UKCA-ready build with a 12 W total load, supplied with a 1.5 m flex and no plug so a qualified electrician makes the final connection
- One carton per unit at 0.12 m³ and about 520 pcs per 40HQ — LED cabinets ship on the same container as vanities and mirrors
Specification Questions Buyers Ask
Is the lighting front-lit or back-lit, and why does it matter?
Front-lit. The strip sits behind the door edge and throws light forward onto the user, which is what a shaving or make-up position needs. Back-lit mirrors glow onto the wall and look good in photographs, but they light the room rather than the face, so hotels usually specify front-lit for the mirror above the basin.
How is the anti-fog pad controlled?
It is wired to the same touch sensor as the light, so it heats whenever the cabinet is on and stops when it is switched off. There is no separate timer to fail and no way for housekeeping to leave it running after checkout.
What happens if a driver or LED strip fails in a hotel?
The driver sits in a hinged compartment inside the cabinet, reachable by opening a door, so it is a five-minute swap with a spare. We recommend ordering 2 % spare drivers with a project order; the strip itself is a plug-in module fixed with two screws.
Can the cabinet be supplied for 110–120 V markets?
Yes. The driver is specified per order — 220–240 V for Europe, the UK, Australia and the Middle East, or 110–120 V for North America and Japan. Tell us the destination market at inquiry stage and the quotation names the exact driver and plug standard.
What is the MOQ and can it carry our brand?
20 pcs per model. The touch sensor icon can be printed with your own symbol, the carton carries your artwork, and a label with your model code and barcode goes on the driver compartment — all at no tooling cost on a 20 pcs order.
