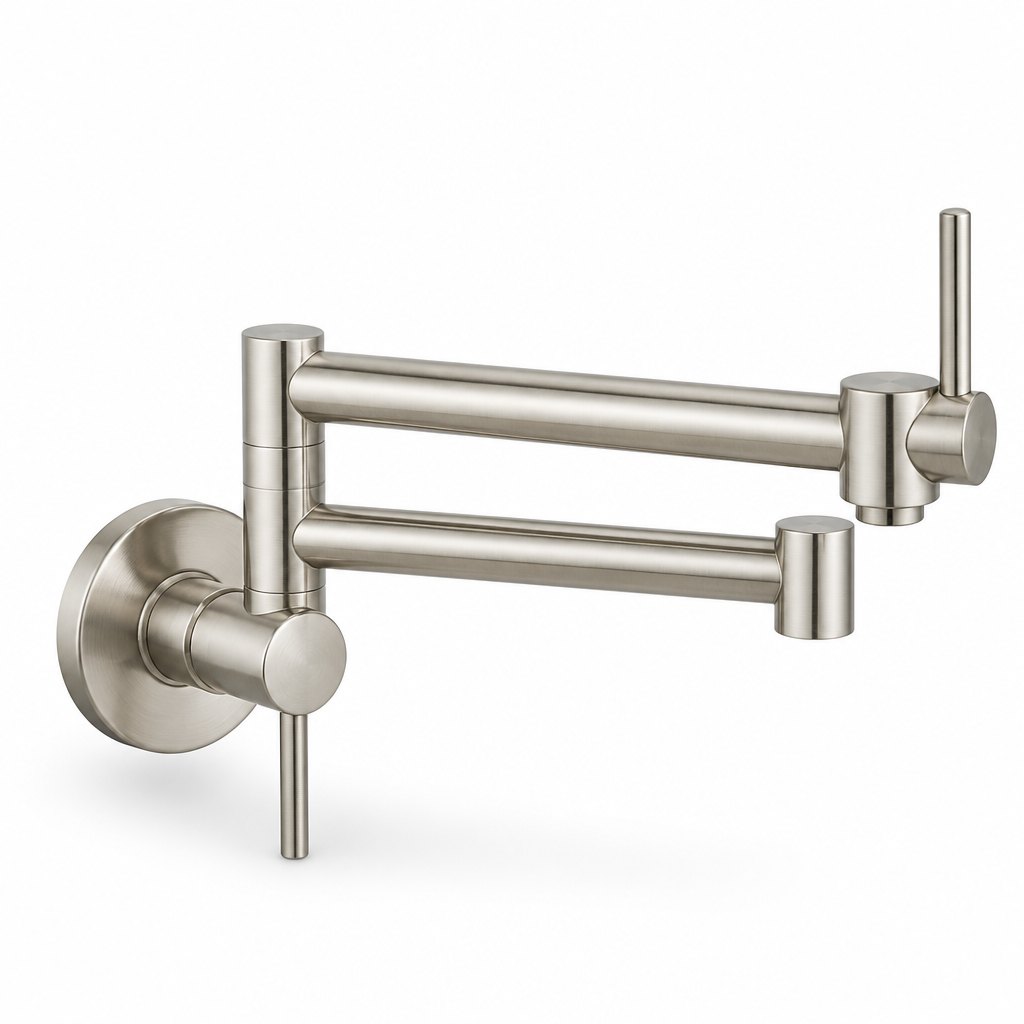

Wall-Mount Pot Filler, Brushed Nickel
Brushed nickel pvd, brass body, 1.8 GPM / 6.8 L/min — folding arm, dual shut-off
A pot filler is bought for the reach, so the joints decide the product. Ours folds back to 120 mm against the wall and extends to 600 mm over the cooktop, with a shut-off at the wall and a second at the spout. The body is brass with a brushed nickel PVD finish, the spout is wall-mount folding at 600 mm folded reach, 2 joints, and the flow is held at 1.8 GPM / 6.8 L/min through a replaceable aerator. Packing is 0.008 m³ per unit, 24 pcs per carton, about 6,400 pcs per 40HQ, so a mixed container can carry more than one finish.
- ModelFAME-KF-WM120-BN
- TypeKitchen faucet
- Body materialbrass
- Finishbrushed nickel PVD
- Spoutwall-mount folding, 600 mm folded reach, 2 joints
- Flow rate1.8 GPM / 6.8 L/min
Trade inquiry only — this is a B2B catalog with no online checkout. Our team replies within 24 hours.
Full Specification
- ModelFAME-KF-WM120-BN
- TypeKitchen faucet
- Body materialbrass
- Finishbrushed nickel PVD
- Spoutwall-mount folding, 600 mm folded reach, 2 joints
- Flow rate1.8 GPM / 6.8 L/min
- Cartridge35 mm ceramic disc, 500,000 cycles, top-serviceable
- AeratorRemovable insert; 1.5 GPM alternative supplied on request
- Inlet600 mm stainless braided hoses, 3/8 in compression (1/2 in NPT on request)
- MountingFolding arm, dual shut-off
- CertificationcUPC / NSF-61-9 / lead-free build, certificate issued per order
- MOQ / lead time20 pcs per model; 30-35 days after deposit
- Packing0.008 m³ per unit, 24 pcs per carton, about 6,400 pcs per 40HQ
Why Buyers Choose This Model
- Two-joint folding arm extends to 600 mm and parks at 120 mm, so it clears a 900 mm range without being in the way
- Dual shut-off — a quarter-turn valve at the wall plus a lever at the spout, which is what most plumbing inspectors ask for
- Single cold inlet with a 1/2 in NPT male thread, so it connects to the rough-in without an adapter
- 35 mm ceramic disc cartridge rated to 500,000 cycles, replaceable from above without disconnecting the supply
- 1.8 GPM / 6.8 L/min through a removable aerator insert — swap to 1.5 GPM for restricted jurisdictions without a new SKU
- All wetted parts lead-free to NSF/ANSI 61-9; cUPC-ready construction with certificates issued per order
- Packing: 0.008 m³ per unit, 24 pcs per carton, about 6,400 pcs per 40HQ
- MOQ 20 pcs per model, mixed finishes on one order; OEM laser etching and retail box available
Specification Questions Buyers Ask
Do pot fillers need a separate water line?
Yes — one cold line roughed in at the cooktop wall, 1/2 in NPT male, at the height you specify. We supply a mounting plate and a 1/2 in extension nipple; the line itself is part of the plumbing package, not the faucet.
What is the minimum order and lead time?
20 pcs per model per finish, and 30-35 days after deposit and artwork approval. Mixed models are allowed on one order as long as the finish is the same, which is what most distributors do when they build a first container across a category.
Which certificates come with the tap?
Every unit is built to cUPC and NSF/ANSI 61-9 requirements with a lead-free wetted path, and the certificate for the production lot is issued with the shipping documents. If your market needs WRAS, WaterMark or ACS, tell us at inquiry — those runs are quoted separately because the testing is per lot.
Can you put our brand on the product and the box?
Yes. Laser etching on the body or the base ring, a printed color box and a customer label are all available from 500 pcs, and etching alone from 200 pcs. Send the logo file as vector artwork and we return a proof before production.
Can we get a sample before ordering?
A sample ships at unit price plus freight, and the sample cost is credited against the order once it passes 500 pcs. For a project that needs three finishes side by side, we send all three on one shipment so the tones can be compared under the same light.
Building a Faucets Program?
Send your target market, sizes and quantities — we reply within 24 hours with a tailored quotation.
