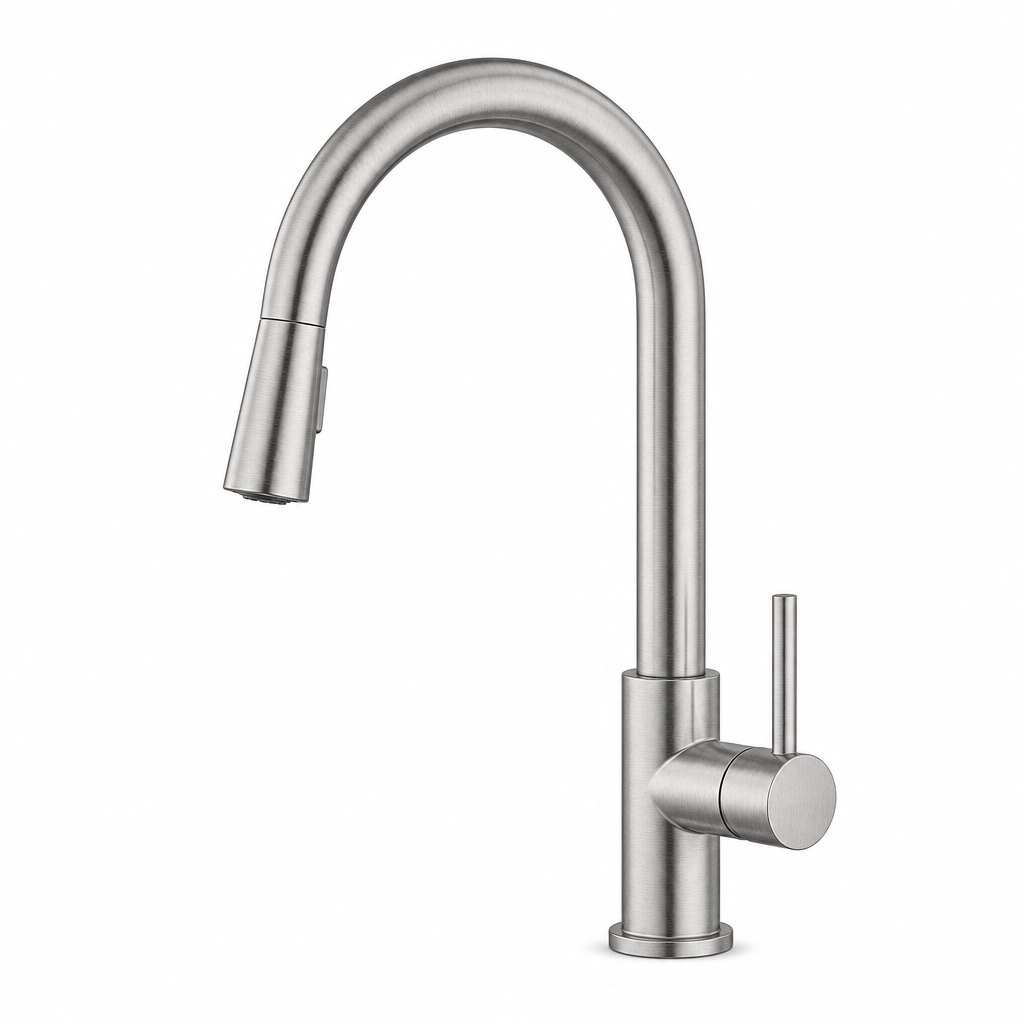

304 Stainless Pull-Down Faucet

Brushed stainless, 304 stainless steel body, 1.8 GPM / 6.8 L/min — lead-free 304 body, no plating

304 Stainless Pull-Down Faucet

A stainless body with no plating at all. There is no brass underneath and no finish layer to wear, which is the argument that closes a specification where lead content or coating durability is being questioned. The body is 304 stainless steel with a brushed stainless finish, the spout is pull-down at 430 mm spout reach 225 mm, and the flow is held at 1.8 GPM / 6.8 L/min through a replaceable aerator. Packing is 0.014 m³ per unit, 16 pcs per carton, about 4,000 pcs per 40HQ, so a mixed container can carry more than one finish.

  • ModelFAME-KF-SS160-BS
  • TypeKitchen faucet
  • Body material304 stainless steel
  • Finishbrushed stainless
  • Spoutpull-down, 430 mm spout reach 225 mm
  • Flow rate1.8 GPM / 6.8 L/min
Request a Quote for This Model Faucets

Trade inquiry only — this is a B2B catalog with no online checkout. Our team replies within 24 hours.

Full Specification

  • ModelFAME-KF-SS160-BS
  • TypeKitchen faucet
  • Body material304 stainless steel
  • Finishbrushed stainless
  • Spoutpull-down, 430 mm spout reach 225 mm
  • Flow rate1.8 GPM / 6.8 L/min
  • Cartridge35 mm ceramic disc, 500,000 cycles, top-serviceable
  • AeratorRemovable insert; 1.5 GPM alternative supplied on request
  • Inlet600 mm stainless braided hoses, 3/8 in compression (1/2 in NPT on request)
  • MountingLead-free 304 body, no plating
  • CertificationcUPC / NSF-61-9 / lead-free build, certificate issued per order
  • MOQ / lead time20 pcs per model; 30-35 days after deposit
  • Packing0.014 m³ per unit, 16 pcs per carton, about 4,000 pcs per 40HQ

Why Buyers Choose This Model

  • 304 stainless body and spout with a brushed grain finish — no plating layer, so there is nothing to peel at the cut edges
  • Lead-free wetted path, which answers the NSF/ANSI 61-9 question without a brass-content exemption
  • Welded spout with a machined thread, pressure tested at 1.6 MPa before packing
  • 35 mm ceramic disc cartridge rated to 500,000 cycles, replaceable from above without disconnecting the supply
  • 1.8 GPM / 6.8 L/min through a removable aerator insert — swap to 1.5 GPM for restricted jurisdictions without a new SKU
  • All wetted parts lead-free to NSF/ANSI 61-9; cUPC-ready construction with certificates issued per order
  • Packing: 0.014 m³ per unit, 16 pcs per carton, about 4,000 pcs per 40HQ
  • MOQ 20 pcs per model, mixed finishes on one order; OEM laser etching and retail box available

Specification Questions Buyers Ask

Why specify stainless instead of brass?
Two reasons: no decorative plating to fail, and a wetted path that is lead-free by material rather than by alloy control. The trade-off is cost per unit and a narrower finish range — stainless comes in brushed or black, not chrome.
What is the minimum order and lead time?
20 pcs per model per finish, and 30-35 days after deposit and artwork approval. Mixed models are allowed on one order as long as the finish is the same, which is what most distributors do when they build a first container across a category.
Which certificates come with the tap?
Every unit is built to cUPC and NSF/ANSI 61-9 requirements with a lead-free wetted path, and the certificate for the production lot is issued with the shipping documents. If your market needs WRAS, WaterMark or ACS, tell us at inquiry — those runs are quoted separately because the testing is per lot.
Can you put our brand on the product and the box?
Yes. Laser etching on the body or the base ring, a printed color box and a customer label are all available from 500 pcs, and etching alone from 200 pcs. Send the logo file as vector artwork and we return a proof before production.
Can we get a sample before ordering?
A sample ships at unit price plus freight, and the sample cost is credited against the order once it passes 500 pcs. For a project that needs three finishes side by side, we send all three on one shipment so the tones can be compared under the same light.
