Commercial Spring Pull-Down, Chrome

Polished chrome, brass body, 1.8 GPM / 6.8 L/min — exposed spring, high arc

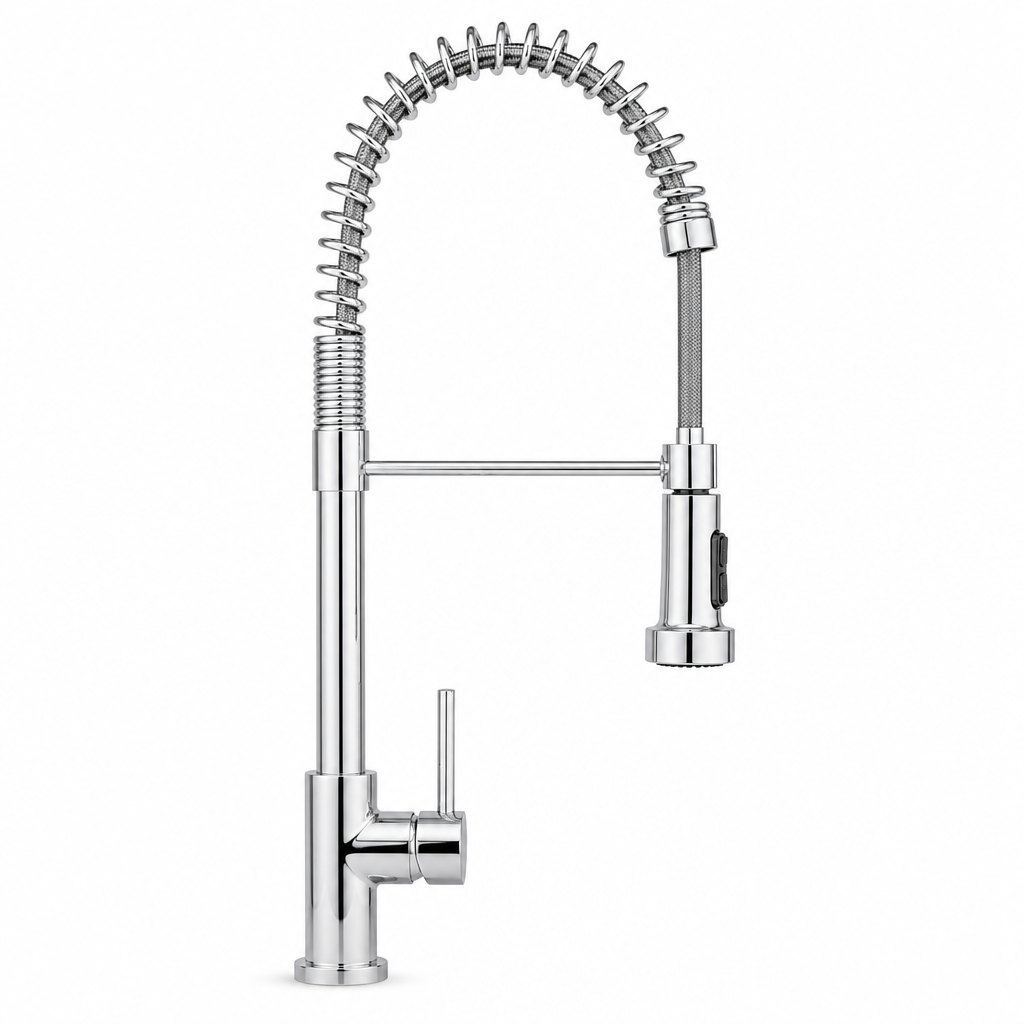

Commercial Spring Pull-Down, Chrome

The exposed-spring design from commercial kitchens, sold into residential projects because it reaches a full commercial sink and reads as professional. The spring is the functional part: it takes the load off the hose so the head returns without a magnet. The body is brass with a polished chrome finish, the spout is spring pull-down at 500 mm height, 220 mm reach, and the flow is held at 1.8 GPM / 6.8 L/min through a replaceable aerator. Packing is 0.018 m³ per unit, 12 pcs per carton, about 3,200 pcs per 40HQ, so a mixed container can carry more than one finish.

  • ModelFAME-KF-SP180-CH
  • TypeKitchen faucet
  • Body materialbrass
  • Finishpolished chrome
  • Spoutspring pull-down, 500 mm height, 220 mm reach
  • Flow rate1.8 GPM / 6.8 L/min
Request a Quote for This Model Faucets

Trade inquiry only — this is a B2B catalog with no online checkout. Our team replies within 24 hours.

Full Specification

  • ModelFAME-KF-SP180-CH
  • TypeKitchen faucet
  • Body materialbrass
  • Finishpolished chrome
  • Spoutspring pull-down, 500 mm height, 220 mm reach
  • Flow rate1.8 GPM / 6.8 L/min
  • Cartridge35 mm ceramic disc, 500,000 cycles, top-serviceable
  • AeratorRemovable insert; 1.5 GPM alternative supplied on request
  • Inlet600 mm stainless braided hoses, 3/8 in compression (1/2 in NPT on request)
  • MountingExposed spring, high arc
  • CertificationcUPC / NSF-61-9 / lead-free build, certificate issued per order
  • MOQ / lead time20 pcs per model; 30-35 days after deposit
  • Packing0.018 m³ per unit, 12 pcs per carton, about 3,200 pcs per 40HQ

Why Buyers Choose This Model

  • Exposed 304 stainless spring carries the hose load, so the head returns to the dock without magnets or weights to adjust
  • 500 mm high arc with a 220 mm reach — clears stock pots and a 500 mm deep commercial sink
  • Dual-function head with a locking spray, which stays on while both hands are on the sink
  • 35 mm ceramic disc cartridge rated to 500,000 cycles, replaceable from above without disconnecting the supply
  • 1.8 GPM / 6.8 L/min through a removable aerator insert — swap to 1.5 GPM for restricted jurisdictions without a new SKU
  • All wetted parts lead-free to NSF/ANSI 61-9; cUPC-ready construction with certificates issued per order
  • Packing: 0.018 m³ per unit, 12 pcs per carton, about 3,200 pcs per 40HQ
  • MOQ 20 pcs per model, mixed finishes on one order; OEM laser etching and retail box available

Specification Questions Buyers Ask

Is this rated for commercial use?
It is built to the same cartridge and hose specification we supply for hotel pantry kitchens, and we quote it with a 1.8 GPM aerator for residential code and a 1.5 GPM insert for restricted jurisdictions. If the project is a commercial kitchen with a grease interceptor, tell us and we will quote the matching flow restrictor.
What is the minimum order and lead time?
20 pcs per model per finish, and 30-35 days after deposit and artwork approval. Mixed models are allowed on one order as long as the finish is the same, which is what most distributors do when they build a first container across a category.
Which certificates come with the tap?
Every unit is built to cUPC and NSF/ANSI 61-9 requirements with a lead-free wetted path, and the certificate for the production lot is issued with the shipping documents. If your market needs WRAS, WaterMark or ACS, tell us at inquiry — those runs are quoted separately because the testing is per lot.
Can you put our brand on the product and the box?
Yes. Laser etching on the body or the base ring, a printed color box and a customer label are all available from 500 pcs, and etching alone from 200 pcs. Send the logo file as vector artwork and we return a proof before production.
Can we get a sample before ordering?
A sample ships at unit price plus freight, and the sample cost is credited against the order once it passes 500 pcs. For a project that needs three finishes side by side, we send all three on one shipment so the tones can be compared under the same light.
