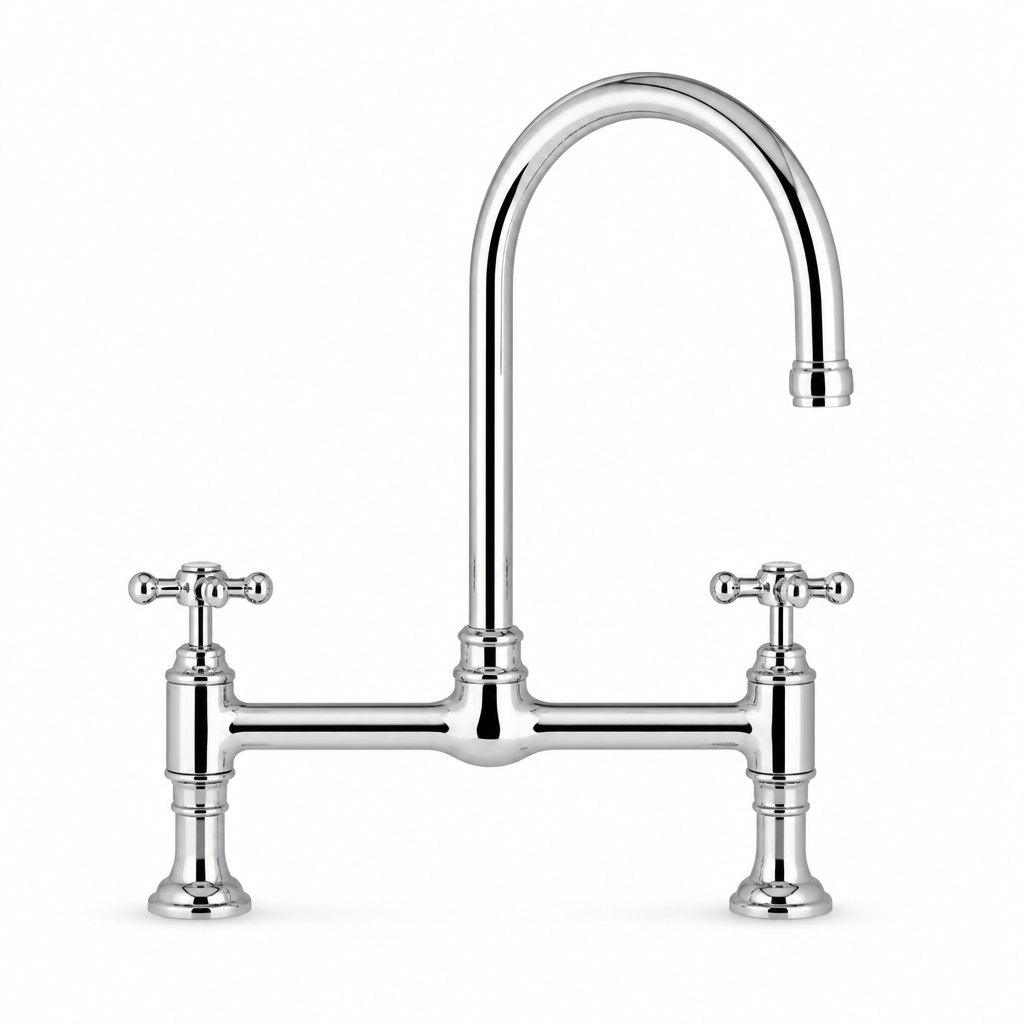

Bridge Kitchen Faucet, Two Handle

Polished chrome, brass body, 1.8 GPM / 6.8 L/min — bridge deck, cross handles

Bridge Kitchen Faucet, Two Handle

The bridge layout puts the two handles on an exposed deck and the spout between them, which is the shape traditional and farmhouse kitchens need. It is also the layout that hides a three-hole deck without an escutcheon plate. The body is brass with a polished chrome finish, the spout is bridge, 8 in centers at 8 in (203 mm) centers, 300 mm height, and the flow is held at 1.8 GPM / 6.8 L/min through a replaceable aerator. Packing is 0.020 m³ per unit, 10 pcs per carton, about 2,800 pcs per 40HQ, so a mixed container can carry more than one finish.

  • ModelFAME-KF-BR220-CH
  • TypeKitchen faucet
  • Body materialbrass
  • Finishpolished chrome
  • Spoutbridge, 8 in centers, 8 in (203 mm) centers, 300 mm height
  • Flow rate1.8 GPM / 6.8 L/min
Request a Quote for This Model Faucets

Trade inquiry only — this is a B2B catalog with no online checkout. Our team replies within 24 hours.

Full Specification

  • ModelFAME-KF-BR220-CH
  • TypeKitchen faucet
  • Body materialbrass
  • Finishpolished chrome
  • Spoutbridge, 8 in centers, 8 in (203 mm) centers, 300 mm height
  • Flow rate1.8 GPM / 6.8 L/min
  • Cartridge35 mm ceramic disc, 500,000 cycles, top-serviceable
  • AeratorRemovable insert; 1.5 GPM alternative supplied on request
  • Inlet600 mm stainless braided hoses, 3/8 in compression (1/2 in NPT on request)
  • MountingBridge deck, cross handles
  • CertificationcUPC / NSF-61-9 / lead-free build, certificate issued per order
  • MOQ / lead time20 pcs per model; 30-35 days after deposit
  • Packing0.020 m³ per unit, 10 pcs per carton, about 2,800 pcs per 40HQ

Why Buyers Choose This Model

  • 8 in (203 mm) bridge centers, so it drops onto a standard three-hole farmhouse or apron sink without a plate
  • Two independent ceramic-disc valves — hot and cold isolate separately, which keeps a failed cartridge from shutting the whole unit
  • Solid brass bridge with a 300 mm high arc and a swivel spout, hand-polished before chrome plating
  • 35 mm ceramic disc cartridge rated to 500,000 cycles, replaceable from above without disconnecting the supply
  • 1.8 GPM / 6.8 L/min through a removable aerator insert — swap to 1.5 GPM for restricted jurisdictions without a new SKU
  • All wetted parts lead-free to NSF/ANSI 61-9; cUPC-ready construction with certificates issued per order
  • Packing: 0.020 m³ per unit, 10 pcs per carton, about 2,800 pcs per 40HQ
  • MOQ 20 pcs per model, mixed finishes on one order; OEM laser etching and retail box available

Specification Questions Buyers Ask

Does it fit a standard three-hole sink?
Yes — the bridge is drilled at 8 in centers, the US standard for three-hole decks. If the deck is drilled at 200 mm rather than 203 mm, the slotted bridge feet take up the difference; tell us at inquiry and we ship the slotted version.
What is the minimum order and lead time?
20 pcs per model per finish, and 30-35 days after deposit and artwork approval. Mixed models are allowed on one order as long as the finish is the same, which is what most distributors do when they build a first container across a category.
Which certificates come with the tap?
Every unit is built to cUPC and NSF/ANSI 61-9 requirements with a lead-free wetted path, and the certificate for the production lot is issued with the shipping documents. If your market needs WRAS, WaterMark or ACS, tell us at inquiry — those runs are quoted separately because the testing is per lot.
Can you put our brand on the product and the box?
Yes. Laser etching on the body or the base ring, a printed color box and a customer label are all available from 500 pcs, and etching alone from 200 pcs. Send the logo file as vector artwork and we return a proof before production.
Can we get a sample before ordering?
A sample ships at unit price plus freight, and the sample cost is credited against the order once it passes 500 pcs. For a project that needs three finishes side by side, we send all three on one shipment so the tones can be compared under the same light.
