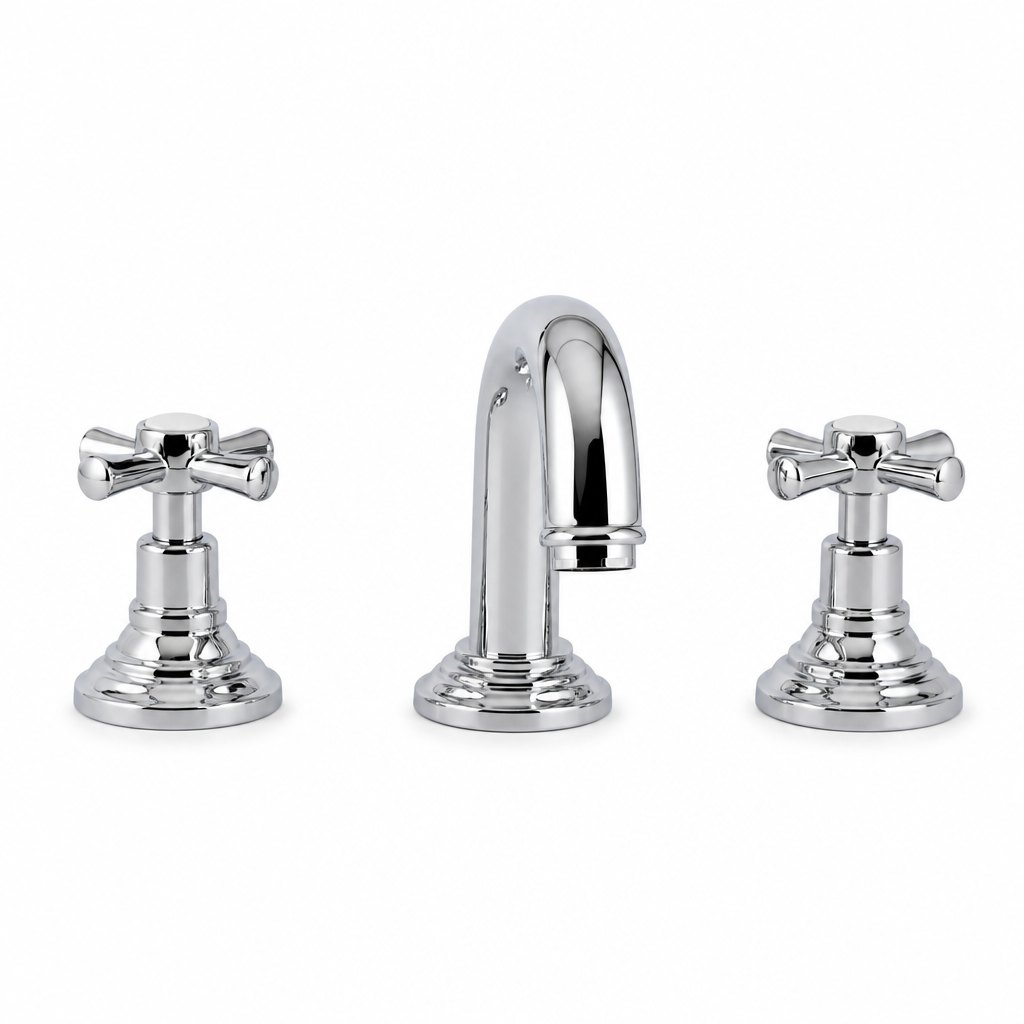

Widespread Basin Tap, 3-Hole Chrome
Polished chrome, brass body, 1.2 GPM / 4.5 L/min — three-hole deck
Three-hole decks still dominate premium bathroom specifications, and a widespread set is the cheapest way to fill one without a deck plate. The 8 in spread is adjustable down to 6 in on the same body. The body is brass with a polished chrome finish, the spout is widespread, 8 in spread at 8 in (203 mm) spread, 140 mm height, and the flow is held at 1.2 GPM / 4.5 L/min through a replaceable aerator. Packing is 0.011 m³ per unit, 20 pcs per carton, about 5,200 pcs per 40HQ, so a mixed container can carry more than one finish.
- ModelFAME-BF-WD200-CH
- TypeBathroom basin tap
- Body materialbrass
- Finishpolished chrome
- Spoutwidespread, 8 in spread, 8 in (203 mm) spread, 140 mm height
- Flow rate1.2 GPM / 4.5 L/min
Trade inquiry only — this is a B2B catalog with no online checkout. Our team replies within 24 hours.
Full Specification
- ModelFAME-BF-WD200-CH
- TypeBathroom basin tap
- Body materialbrass
- Finishpolished chrome
- Spoutwidespread, 8 in spread, 8 in (203 mm) spread, 140 mm height
- Flow rate1.2 GPM / 4.5 L/min
- Cartridge35 mm ceramic disc, 500,000 cycles, top-serviceable
- AeratorRemovable insert; 1.5 GPM alternative supplied on request
- Inlet600 mm stainless braided hoses, 3/8 in compression (1/2 in NPT on request)
- MountingThree-hole deck
- CertificationcUPC / NSF-61-9 / lead-free build, certificate issued per order
- MOQ / lead time20 pcs per model; 30-35 days after deposit
- Packing0.011 m³ per unit, 20 pcs per carton, about 5,200 pcs per 40HQ
Why Buyers Choose This Model
- Adjustable 6–12 in spread on the same body, so one SKU covers the three-hole decks a distributor actually stocks
- Two independent ceramic-disc valves with quarter-turn handles — hot and cold isolate separately for servicing
- Cast brass spout with a laminar aerator that keeps the stream straight at 1.2 GPM instead of spraying
- 35 mm ceramic disc cartridge rated to 500,000 cycles, replaceable from above without disconnecting the supply
- 1.2 GPM / 4.5 L/min through a removable aerator insert — swap to 1.5 GPM for restricted jurisdictions without a new SKU
- All wetted parts lead-free to NSF/ANSI 61-9; cUPC-ready construction with certificates issued per order
- Packing: 0.011 m³ per unit, 20 pcs per carton, about 5,200 pcs per 40HQ
- MOQ 20 pcs per model, mixed finishes on one order; OEM laser etching and retail box available
Specification Questions Buyers Ask
Can the spread be reduced for a 6 in deck?
Yes — the bodies slide on the spout shank and lock between 6 and 12 in, which is why we ship one SKU rather than three. Confirm the deck hole diameter is 32–35 mm; smaller decks need a bushing we supply on request.
What is the minimum order and lead time?
20 pcs per model per finish, and 30-35 days after deposit and artwork approval. Mixed models are allowed on one order as long as the finish is the same, which is what most distributors do when they build a first container across a category.
Which certificates come with the tap?
Every unit is built to cUPC and NSF/ANSI 61-9 requirements with a lead-free wetted path, and the certificate for the production lot is issued with the shipping documents. If your market needs WRAS, WaterMark or ACS, tell us at inquiry — those runs are quoted separately because the testing is per lot.
Can you put our brand on the product and the box?
Yes. Laser etching on the body or the base ring, a printed color box and a customer label are all available from 500 pcs, and etching alone from 200 pcs. Send the logo file as vector artwork and we return a proof before production.
Can we get a sample before ordering?
A sample ships at unit price plus freight, and the sample cost is credited against the order once it passes 500 pcs. For a project that needs three finishes side by side, we send all three on one shipment so the tones can be compared under the same light.
