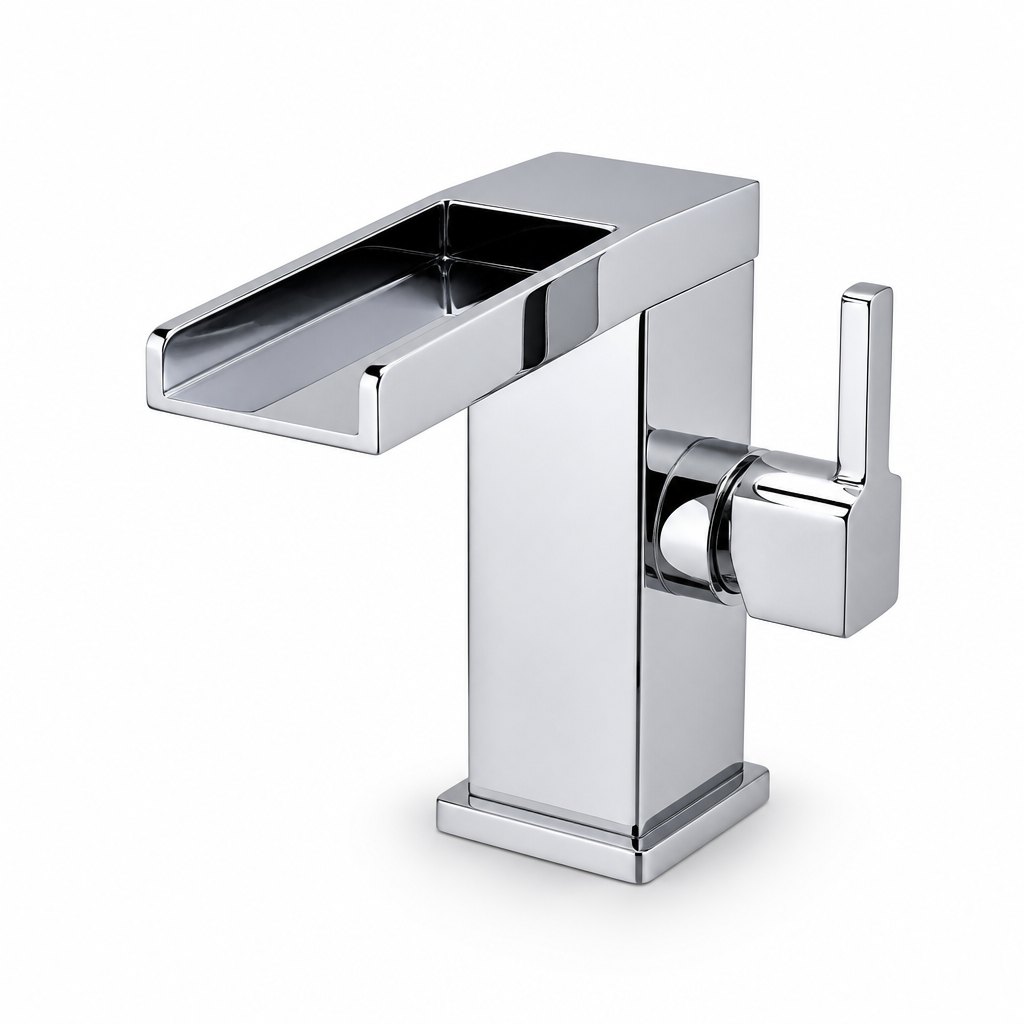

Waterfall Basin Tap, Chrome

Polished chrome, brass body, 1.2 GPM / 4.5 L/min — open-channel spout

Waterfall Basin Tap, Chrome

A waterfall spout is bought for how it looks and rejected for how it splashes, so the channel geometry does the work here: the outlet is 130 mm wide with a slight forward lip, which keeps the sheet inside a standard basin. The body is brass with a polished chrome finish, the spout is waterfall, 130 mm wide at 180 mm height, 130 mm spout, and the flow is held at 1.2 GPM / 4.5 L/min through a replaceable aerator. Packing is 0.008 m³ per unit, 24 pcs per carton, about 6,400 pcs per 40HQ, so a mixed container can carry more than one finish.

  • ModelFAME-BF-WF130-CH
  • TypeBathroom basin tap
  • Body materialbrass
  • Finishpolished chrome
  • Spoutwaterfall, 130 mm wide, 180 mm height, 130 mm spout
  • Flow rate1.2 GPM / 4.5 L/min
Request a Quote for This Model Faucets

Trade inquiry only — this is a B2B catalog with no online checkout. Our team replies within 24 hours.

Full Specification

  • ModelFAME-BF-WF130-CH
  • TypeBathroom basin tap
  • Body materialbrass
  • Finishpolished chrome
  • Spoutwaterfall, 130 mm wide, 180 mm height, 130 mm spout
  • Flow rate1.2 GPM / 4.5 L/min
  • Cartridge35 mm ceramic disc, 500,000 cycles, top-serviceable
  • AeratorRemovable insert; 1.5 GPM alternative supplied on request
  • Inlet600 mm stainless braided hoses, 3/8 in compression (1/2 in NPT on request)
  • MountingOpen-channel spout
  • CertificationcUPC / NSF-61-9 / lead-free build, certificate issued per order
  • MOQ / lead time20 pcs per model; 30-35 days after deposit
  • Packing0.008 m³ per unit, 24 pcs per carton, about 6,400 pcs per 40HQ

Why Buyers Choose This Model

  • 130 mm open channel with a forward lip — the sheet of water lands inside a 400 mm basin instead of running back under the spout
  • 1.2 GPM flow through a wide outlet, so the visual effect is a sheet rather than a jet that splashes
  • Solid brass body with a polished chrome face plate that lifts off for cleaning the channel
  • 35 mm ceramic disc cartridge rated to 500,000 cycles, replaceable from above without disconnecting the supply
  • 1.2 GPM / 4.5 L/min through a removable aerator insert — swap to 1.5 GPM for restricted jurisdictions without a new SKU
  • All wetted parts lead-free to NSF/ANSI 61-9; cUPC-ready construction with certificates issued per order
  • Packing: 0.008 m³ per unit, 24 pcs per carton, about 6,400 pcs per 40HQ
  • MOQ 20 pcs per model, mixed finishes on one order; OEM laser etching and retail box available

Specification Questions Buyers Ask

Does a waterfall tap splash?
Less than a narrow high-arc tap at the same flow, because the water leaves as a sheet rather than a jet. It still needs a basin with a rim at least 130 mm from the spout, so check the vanity drawing before specifying.
What is the minimum order and lead time?
20 pcs per model per finish, and 30-35 days after deposit and artwork approval. Mixed models are allowed on one order as long as the finish is the same, which is what most distributors do when they build a first container across a category.
Which certificates come with the tap?
Every unit is built to cUPC and NSF/ANSI 61-9 requirements with a lead-free wetted path, and the certificate for the production lot is issued with the shipping documents. If your market needs WRAS, WaterMark or ACS, tell us at inquiry — those runs are quoted separately because the testing is per lot.
Can you put our brand on the product and the box?
Yes. Laser etching on the body or the base ring, a printed color box and a customer label are all available from 500 pcs, and etching alone from 200 pcs. Send the logo file as vector artwork and we return a proof before production.
Can we get a sample before ordering?
A sample ships at unit price plus freight, and the sample cost is credited against the order once it passes 500 pcs. For a project that needs three finishes side by side, we send all three on one shipment so the tones can be compared under the same light.
