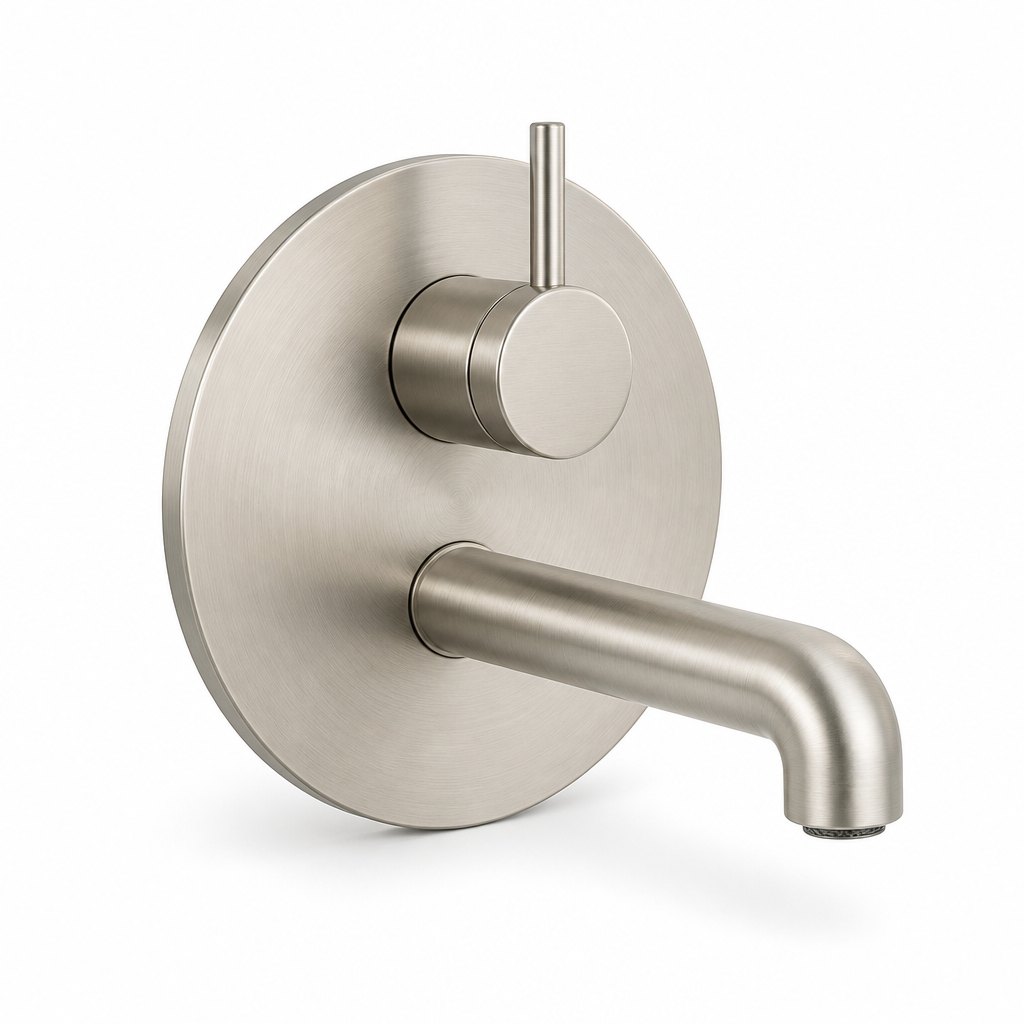

Wall-Mount Basin Mixer, Brushed Nickel

Brushed nickel pvd, brass body, 1.2 GPM / 4.5 L/min — concealed body, rough-in valve

Wall-Mount Basin Mixer, Brushed Nickel

Wall-mounted taps free the counter, but they move the risk into the wall: if the rough-in body is wrong, the tile comes off. We ship the concealed body and the trim as one kit with a 1/2 in NPT inlet, so the plumber sets the depth once. The body is brass with a brushed nickel PVD finish, the spout is wall-mount, 200 mm at 200 mm spout projection, and the flow is held at 1.2 GPM / 4.5 L/min through a replaceable aerator. Packing is 0.010 m³ per unit, 20 pcs per carton, about 5,600 pcs per 40HQ, so a mixed container can carry more than one finish.

  • ModelFAME-BF-WM150-BN
  • TypeBathroom basin tap
  • Body materialbrass
  • Finishbrushed nickel PVD
  • Spoutwall-mount, 200 mm, 200 mm spout projection
  • Flow rate1.2 GPM / 4.5 L/min
Request a Quote for This Model Faucets

Trade inquiry only — this is a B2B catalog with no online checkout. Our team replies within 24 hours.

Full Specification

  • ModelFAME-BF-WM150-BN
  • TypeBathroom basin tap
  • Body materialbrass
  • Finishbrushed nickel PVD
  • Spoutwall-mount, 200 mm, 200 mm spout projection
  • Flow rate1.2 GPM / 4.5 L/min
  • Cartridge35 mm ceramic disc, 500,000 cycles, top-serviceable
  • AeratorRemovable insert; 1.5 GPM alternative supplied on request
  • Inlet600 mm stainless braided hoses, 3/8 in compression (1/2 in NPT on request)
  • MountingConcealed body, rough-in valve
  • CertificationcUPC / NSF-61-9 / lead-free build, certificate issued per order
  • MOQ / lead time20 pcs per model; 30-35 days after deposit
  • Packing0.010 m³ per unit, 20 pcs per carton, about 5,600 pcs per 40HQ

Why Buyers Choose This Model

  • Concealed brass body and trim supplied as one kit — the rough-in depth is set by the body, not guessed on site
  • 1/2 in NPT female inlets at 150 mm centers with adjustable mounting brackets for out-of-true studs
  • 200 mm projection clears a 120 mm counter upstand and lands inside a standard 450 mm basin
  • 35 mm ceramic disc cartridge rated to 500,000 cycles, replaceable from above without disconnecting the supply
  • 1.2 GPM / 4.5 L/min through a removable aerator insert — swap to 1.5 GPM for restricted jurisdictions without a new SKU
  • All wetted parts lead-free to NSF/ANSI 61-9; cUPC-ready construction with certificates issued per order
  • Packing: 0.010 m³ per unit, 20 pcs per carton, about 5,600 pcs per 40HQ
  • MOQ 20 pcs per model, mixed finishes on one order; OEM laser etching and retail box available

Specification Questions Buyers Ask

What rough-in depth do we need?
The finished wall face should sit 45–55 mm from the mounting plate. We supply a setting template and a plastic protection cap so the body can be pressure tested before tiling; the trim goes on after the tile is finished.
What is the minimum order and lead time?
20 pcs per model per finish, and 30-35 days after deposit and artwork approval. Mixed models are allowed on one order as long as the finish is the same, which is what most distributors do when they build a first container across a category.
Which certificates come with the tap?
Every unit is built to cUPC and NSF/ANSI 61-9 requirements with a lead-free wetted path, and the certificate for the production lot is issued with the shipping documents. If your market needs WRAS, WaterMark or ACS, tell us at inquiry — those runs are quoted separately because the testing is per lot.
Can you put our brand on the product and the box?
Yes. Laser etching on the body or the base ring, a printed color box and a customer label are all available from 500 pcs, and etching alone from 200 pcs. Send the logo file as vector artwork and we return a proof before production.
Can we get a sample before ordering?
A sample ships at unit price plus freight, and the sample cost is credited against the order once it passes 500 pcs. For a project that needs three finishes side by side, we send all three on one shipment so the tones can be compared under the same light.
