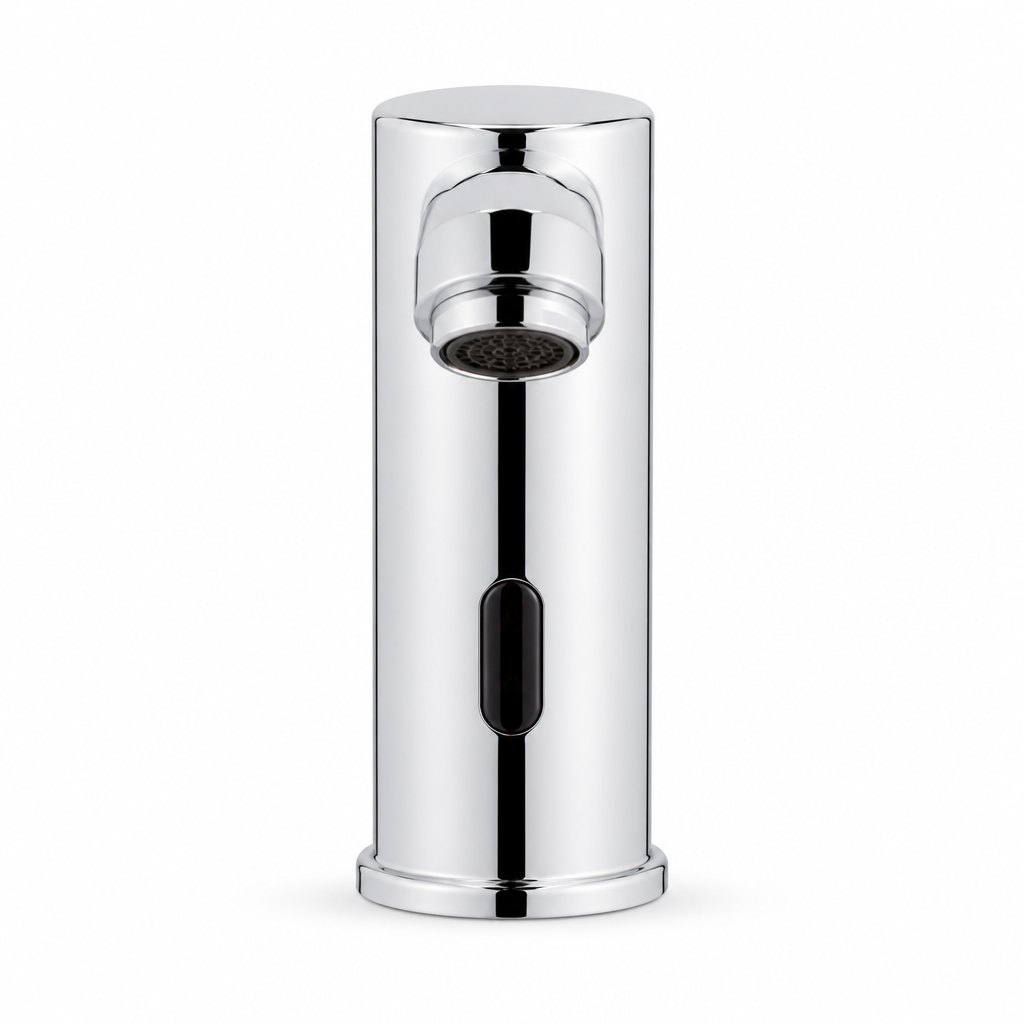

Touchless Sensor Basin Tap, Chrome
Polished chrome, brass body, 1.2 GPM / 4.5 L/min — ir sensor, 4× aa or 6 v
Touchless taps are specified for hygiene and then fail on batteries, so this one runs on either 4× AA cells or a 6 V mains adapter, and the solenoid sits in a serviceable housing under the counter rather than inside the spout. The body is brass with a polished chrome finish, the spout is fixed, 120 mm at 170 mm height, 120 mm reach, and the flow is held at 1.2 GPM / 4.5 L/min through a replaceable aerator. Packing is 0.009 m³ per unit, 20 pcs per carton, about 6,000 pcs per 40HQ, so a mixed container can carry more than one finish.
- ModelFAME-BF-TL120-CH
- TypeBathroom basin tap
- Body materialbrass
- Finishpolished chrome
- Spoutfixed, 120 mm, 170 mm height, 120 mm reach
- Flow rate1.2 GPM / 4.5 L/min
Trade inquiry only — this is a B2B catalog with no online checkout. Our team replies within 24 hours.
Full Specification
- ModelFAME-BF-TL120-CH
- TypeBathroom basin tap
- Body materialbrass
- Finishpolished chrome
- Spoutfixed, 120 mm, 170 mm height, 120 mm reach
- Flow rate1.2 GPM / 4.5 L/min
- Cartridge35 mm ceramic disc, 500,000 cycles, top-serviceable
- AeratorRemovable insert; 1.5 GPM alternative supplied on request
- Inlet600 mm stainless braided hoses, 3/8 in compression (1/2 in NPT on request)
- MountingIR sensor, 4× AA or 6 V
- CertificationcUPC / NSF-61-9 / lead-free build, certificate issued per order
- MOQ / lead time20 pcs per model; 30-35 days after deposit
- Packing0.009 m³ per unit, 20 pcs per carton, about 6,000 pcs per 40HQ
Why Buyers Choose This Model
- Dual power — 4× AA cells rated for about 300,000 cycles, or a 6 V DC adapter for a permanent install with no battery change
- Solenoid and control board in a counter-level service housing, so a failure is fixed without removing the tap
- Adjustable sensor range of 60–180 mm and a 2 s shut-off delay, tunable on site for a small or a deep basin
- 35 mm ceramic disc cartridge rated to 500,000 cycles, replaceable from above without disconnecting the supply
- 1.2 GPM / 4.5 L/min through a removable aerator insert — swap to 1.5 GPM for restricted jurisdictions without a new SKU
- All wetted parts lead-free to NSF/ANSI 61-9; cUPC-ready construction with certificates issued per order
- Packing: 0.009 m³ per unit, 20 pcs per carton, about 6,000 pcs per 40HQ
- MOQ 20 pcs per model, mixed finishes on one order; OEM laser etching and retail box available
Specification Questions Buyers Ask
How long do the batteries last?
About 300,000 cycles on four alkaline AA cells, which in a public washroom is roughly 12–18 months. The unit gives a low-battery indication by slowing the stream before it stops, and we supply the mains adapter for projects that do not want a battery program at all.
What is the minimum order and lead time?
20 pcs per model per finish, and 30-35 days after deposit and artwork approval. Mixed models are allowed on one order as long as the finish is the same, which is what most distributors do when they build a first container across a category.
Which certificates come with the tap?
Every unit is built to cUPC and NSF/ANSI 61-9 requirements with a lead-free wetted path, and the certificate for the production lot is issued with the shipping documents. If your market needs WRAS, WaterMark or ACS, tell us at inquiry — those runs are quoted separately because the testing is per lot.
Can you put our brand on the product and the box?
Yes. Laser etching on the body or the base ring, a printed color box and a customer label are all available from 500 pcs, and etching alone from 200 pcs. Send the logo file as vector artwork and we return a proof before production.
Can we get a sample before ordering?
A sample ships at unit price plus freight, and the sample cost is credited against the order once it passes 500 pcs. For a project that needs three finishes side by side, we send all three on one shipment so the tones can be compared under the same light.
Building a Faucets Program?
Send your target market, sizes and quantities — we reply within 24 hours with a tailored quotation.
